What are the advantages of detachable valve thermal insulation clothing?
The valve is an important heating part in the thermal system, but the valve is often a weak part in the pipeline and requires special attention. Some valves have a higher maintenance or replacement frequency than other equipment. When disassembling the valve, it is often necessary to The insulation material installed on the valve has become a difficulty in maintaining the valve, such as having to re-insulate it, or causing fiber irritation that is harmful to the human body when the insulation material is removed or installed. Therefore, we recommend the use of removable valve thermal insulation clothing produced by Beijing Borui Keyi High Temperature Materials Co., Ltd. What are the advantages of using detachable valve thermal clothing? Let’s take a look together.
1. The thermal insulation effect is good. The thermal insulation layer is made of heat-resistant fiber insulation blanket. The surface is rich in hairiness and can withstand temperatures of 300-1000°C.
2. Easy to disassemble, easy to install, easy to clean pipeline equipment, and convenient for maintenance.
3. Can be used repeatedly and has a long service life.
4. High strength, soft and tough, easy to bend and wrap.
5. It can be customized according to the parts that need to be insulated, and non-marking products can be processed.
6. The product has strong adaptability; it is suitable for pipes and equipment of different temperature ranges and shapes.
What are the main characteristics of valve flexible insulation jacket?
In the process of thermal insulation, we often encounter some inconvenient and uneconomical parts of the insulation process, such as small spaces and different equipment. When some equipment,
valves, flanges and other pipe fittings are disassembled, cleaned and replaced, it is often necessary to To damage the parts with thermal insulation structure, the previous insulation equipment will often
be damaged, requiring the company to re-insulate it. Due to this phenomenon, many companies do not even insulate these parts, which often only results in greater economic losses and energy waste. The
flexible insulation cover is a product developed based on this situation and combined with actual conditions.Let's take a look at the main characteristics of flexible thermal insulation jackets.

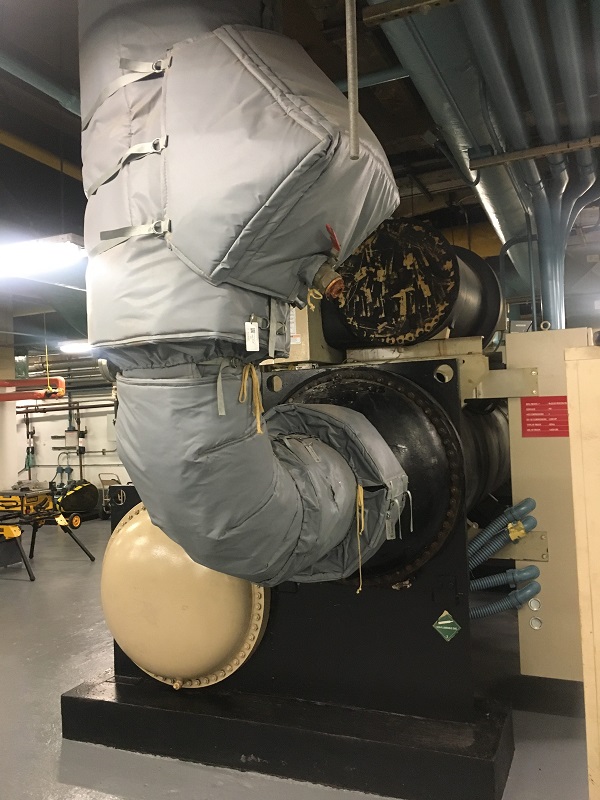

The flexible thermal insulation jacket is made of high-temperature-resistant, fire-resistant insulation material, consisting of an inner lining, a middle insulation layer,and an outer protective layer.
The inner lining is made of silicone-coated fiberglass composite cloth, with a maximum temperature resistance of 260°C.For valves with high steam pressure ( For example, 8barg pressure steam stop
valves and filters) We use PTFE-coated glass fiber cloth for lining, with a maximum temperature resistance of 300°C, which can ensure the service life of the insulation jacket. The middle protective
layer is made of 25mm thick fiberglass needle-punched blanket, and the outer protective layer is made of silicone-coated fiberglass composite cloth with a maximum temperature resistance of 260°C.
The sewing thread has a maximum temperature resistance of 300°C.After careful design and mapping, it is produced through a special process Become.
What are the main characteristics of flexible thermal insulation jackets；
1. 100% free of asbestos and any other harmful substances, no fiber scattering problem, environmentally friendly and pollution-free, completely harmless to people and the environment
2. The main insulation material is made of heat-resistant and environmentally friendly materials, which has good thermal insulation effect and can save 80% of heat energy and reduce energy loss.
3. The outer protective layer material is waterproof and oil-proof, has good hydrophobicity, does not burn when exposed to fire, and resists climate aging.
4. Using high-temperature nylon Velcro, it is easy to disassemble, install, clean pipeline equipment, and maintain. No special training is required. The installation or removal time of a single set
is ≤5mins,saving more than 50% of manpower.
5. High strength, soft and tough, easy to bend and bandage
6. Can be used repeatedly, with a lifespan of 5-8 years
7. The product has strong adaptability and is suitable for valves of different temperature ranges and shapes.
8. The product has a beautiful and neat appearance, no adhesion and is easy to clean.
9. Good chemical stability, resistant to various chemical corrosion, can be used in indoor and outdoor or underground pipe networks
10. Improve the working thermal environment, reduce noise, reduce burning injuries, and prevent personnel from being scalded
