DIN/EN1092-1 Trunnion Ball Valve 3pc Bolted Bonnet Body

Short Description:

Production Range DIN/EN Trunnion Mounted Ball Valve
Size 50mm~600mm
Pressure PN16~PN420
Production Standards EN/DIN/API/ANSI/ASME
End Connection EN1092-1
Test & Inspection API 598/ API 6D/ISO5208/EN12266
Material supply range GP280GH, GP240GH/1.0619/1.4408 etc.

Design Feature


Product Tags

Product Description

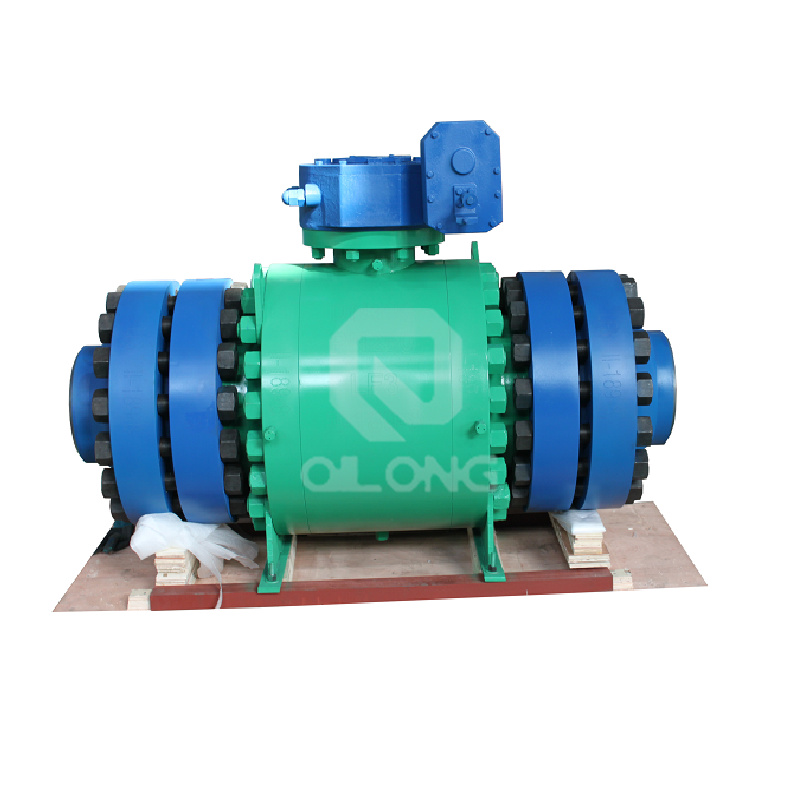

DIN/EN1092-1 forged steel LTCS trunnion mounted ball valve, DN300 PN250, 3pc bolted bonnet body design, body LF3 and ball F304, stem 17-4Ph, seat PEEK, gearbox operation, complete with counter flanges and bolting.

The Difference Between ANSI and DIN

DIN is most commonly specified in European countries, while ANSI is usually specified in the United States. Therefore, the majority of factories in North America are likely to have piping that is ANSI certified, while similar plants in European countries have DIN piping. When working with piping that uses the ANSI standard, the flange bolt patterns, face-to-face valve dimensions and pressure requirements will all be in standard measurements (inches and psi). DIN standards use metric measurements (mm and bar) to measure the valve and flange sizes and pressures.

  • Previous:
  • Next:

  • Specific
    Production Range Trunnion Ball Valves
    Size 50mm~600mm
    Pressure PN16~PN420
    Operation Manual, Worm Gearbox, Pneumatic actuator, Electric actuator, Hydraulic-electric actuator
    Working Medium WOG
    Production Standards API/ANSI/ASME/EN/DIN/BS/GOST
    Body Side entry 2pcs or 3pcs full weld or bolted body
    Seat design type Double block and bleed single piston seat as standard
    Ball type Trunnion mounted ball
    Sealant injection Stem and Seats  sealant injection for soft seat, N/A for metal seat.
    Material type Forged steel or Cast steel: carbon steel, LTCS, alloy steel, stainless steel, duplex steel, bronze, Inconel, Hastelloy, Monel, Incoloy etc.
    Material code WCB/A105, LCB/LF2, CF8/F304, CF8M/F316, CF3/F304L, CF3M/F316L, C95800, 4A/CD3MN/F51, Inconel 625, Monel 400/CW12MW, etc
    Soft seat material Soft seat: PTFE/RPTFE/DELVON/PEEK/PPL
    Metal seat material Metal seated: Hard coating material like CRC/TCC/STL/Ni60
    Design& MFG code API 608/API 6D/ISO17292/ ISO 14313/ASME B16.34/BS5351
    Face to Face ASME B16.10, EN558,ISO5752
    End Connection FLANGE RF/RTJ ASME B16.5; BUTT WELD BW ASME B16.25
    Test & Inspection API 598, API 6D, ISO5208/ISO 5208
    Basic design
    Stem feature Anti blow out proof
    Ball type Side entry
    Bore type Full bore or Reduced Bore
    Bonnet Construction Bolted bonnet or full welded bonnet
    Optional customize NACE MR0175, MR0103, ISO 15156 compliance
    ISO 5211 MOUNTING PAD Bare-shaft
    Limit Switch
    Lock device
    ESDV service suitability
    Bidirectional sealing to Zero leakage
    Extend stem for cryogenic service
    Non-destructive testing (NDT) to API 6D, ASME B16.34
    Documents EN 10204 3.1  MTR Material  test report
    Pressure inspection report
    Visual and dimension control report
    Product warranty report
    Valve operation manual
    Product of origin
